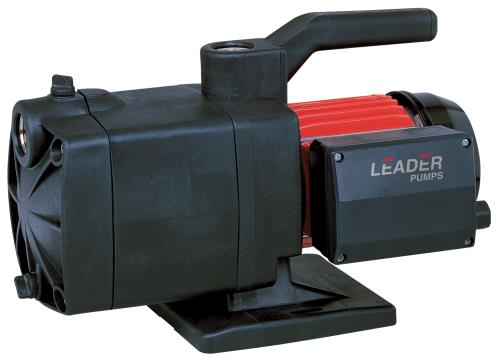

Leader Ecoplus 240, 3/4 HP - 115 Volt, 648 GPH

Leader Ecoplus Horizontal Multistage Pump 240 3/4 HP - 115V

Applications

Multi-stage, self priming centrifugal pump with horizontal shaft, with optimal liquid aspiration even in the presence of air bubbles, featuring extremely quiet operation suitable for domestic water supply and pressurization, irrigation of gardens and general water movement.

Constructional features of the pump

• Technopolymer pump body and motor support.
• Technopolymer impeller, diffuser, self-priming disc.
• Carbon/ceramic mechanical seal.

Constructional features of the motor

• Induction motor, closed and cooled with external ventilation.
• Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and a long life.
• Built-in thermal and current overload protection on ECOPLUS230
• Bult-in thermal and resettable overload protection on ECOPLUS 240/250
• Capacitor permanently in circuit.
• Manufactured according to UL 778 -2010 & CSA 108-1
• Motor protection: NEMA3
• Terminal Box protection: NEMA3
• Insulation class: F
• Standard voltage: 115v 60Hz
